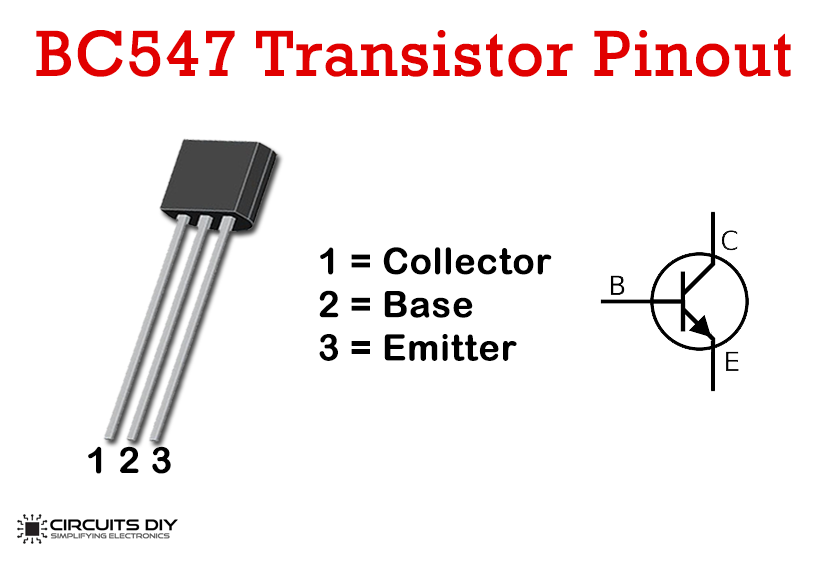

Pin2 (Base): This pin controls the transistor biasing. Pin1 (Collector): This pin is denoted with symbol ‘C’ and the flow of current will be through the collector terminal. When base current is removed the transistor becomes fully off, this stage is called as the Cut-off Region and the Base Emitter voltage could be around 660 mV. The BC547 transistor includes three pins which include the following. This stage is called Saturation Region and the typical voltage allowed across the Collector-Emitter (VCE) or Base-Emitter (VBE) could be 200 and 900 mV respectively. When this transistor is fully biased then it can allow a maximum of 100mA to flow across the collector and emitter. To bias a transistor we have to supply current to base pin, this current (IB) should be limited to 5mA. The maximum amount of current that could flow through the Collector pin is 100mA, hence we cannot connect loads that consume more than 100mA using this transistor. BC547 has a gain value of 110 to 800, this value determines the amplification capacity of the transistor. If you find some noise in the audio output, please check whether all the connections are tight.BC547 is a NPN transistor hence the collector and emitter will be left open (Reverse biased) when the base pin is held at ground and will be closed (Forward biased) when a signal is provided to base pin. The speaker starts playing the sound which is loud and clear. Let’s test the Audio AmplifierĬonnect the AUX cable with your smartphone and play some music on it. At last, connect the positive wire of the power supply with the collector pin of the first transistor and the negative wire with the emitter pin of the second transistor.
Then connect the ground wire of the AUX cable with the emitter pin of the second transistor and the signal pin of the AUX cable with the negative leg of the capacitor. Get contact number of verified dealers of Integrated Circuits ID. Together with other electronic components, such as resistors. Usually, the ground wire is black and the signal wires are blue and green in many AUX cables. Tronix365 - Offering Bc547 Transistor, Transistors at Rs 10/5piece in Pune, Maharashtra. A BC547 transistor is a negative-positive-negative (NPN) transistor that is used for many purposes. You can use a continuity checker or a multimeter for identification purposes. Peel the covering of an AUX cable and separate the ground and signal wires.
Attach the positive wire of the speaker to the collector pin of the second transistor. Now take a 1 uF capacitor and connect its positive leg with the base pin of the first transistor. Join the negative wire of the speaker with the collector pin of the first transistor as shown above. Connect a 10K-ohm resistor between the base and collector pin of the first transistor. Take two bc547 transistors and connect the emitter pin of the first transistor with the base pin of the second transistor. This circuit is not much powerful to use at parties but you can use this at your home. An external power supply is also needed to boost up the output audio. We can take the low input signals from the audio jack of smartphones or PCs and convert them into high-quality amplified output signals which are given to an external speaker. A transistor amplifier is used to amplify the low input audio signals. In this project, we will make an audio amplifier. Working transistor amplifierĪmplifiers are of many types such as power amplifier, video amplifier, IF amplifier, current, and voltage amplifier. It can be used in modules like relay driver, LED driver, etc. You can also check our latest projects on IoT and basic electronics. Browse the list of BC 547 Transistor Applications: It Can be used in Audio amplifiers, Signal amplifier, etc. The circuit which we are going to discuss is easy to make and required some basic electronics components. Have you ever seen the circuits of the amplifiers or the home theater that is used for playing the music? Do you want to make the same circuit for playing music? In this article, we are going to make a transistor amplifier using two bc547 transistors to make BJT as an amplifier.
